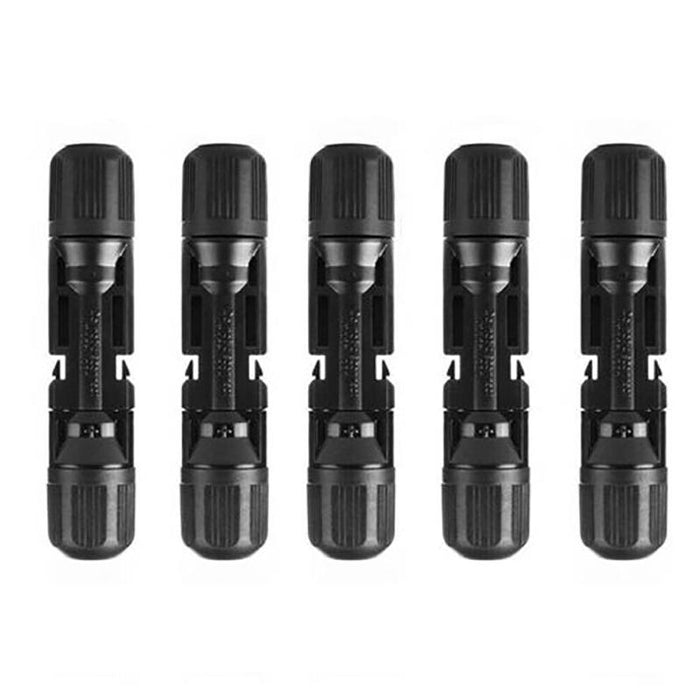

5 Pairs For Solar Panel Connectors IP67 30A Line Plug Socket Male & Female

Description

 Unleash the full potential of your solar power system with TOOLCRAFTERS' high-performance Solar Panel Cable Connectors. Designed to ensure secure and efficient connections, these connectors are built to withstand extreme conditions and deliver unparalleled performance.

Features

• High Voltage Resistance: Can handle up to 1000V, ensuring safe and reliable connections.
• Strong Current Capacity: Rated for 30A with 4mm2 and 6mm2 wires.
• Superior Protection: IP67 rating guarantees protection against dust and water.
• Durable Materials: Made with PPO insulation and copper with silver plating for optimal conductivity and longevity.
• Wide Operating Temperature Range: Performs exceptionally from -40°C to +90°C.
• Safety Assurance: Conforms to Safe Class 2 and Flame Class UL94-V0 standards.
• Low Contact Resistance: ≤5mΩ, ensuring efficient power transfer.
• Easy Connection: Requires ≤50N insertion force and guarantees ≥50N withdrawal force.
• Versatile Cable Compatibility: Suitable for 2.5mm2/4mm2/6mm2 (AWG14/12/10) cables.
• Fast : Quick dispatch from Sydney for timely deliveries.

Specifications

• Rate Voltage: 1000V
• Rated Current: 30A (4mm2, 6mm2)
• Test Voltage: 6KV (50Hz)
• Protect Degree: IP67
• Insulation Material: PPO
• Contact Material: Copper, Silver Plated
• Operating Temperature: -40°C to +90°C
• Safe Class: 2
• Flame Class: UL94-V0
• Contact Resistance of Plug Connectors: ≤5mΩ
• Insertion Force: ≤50N
• Withdraw Force: ≥50N
• Suitable Cable: 2.5mm2/4mm2/6mm2 (AWG14/12/10)

Package Includes

• 1x Male Solar Panel Cable Connector
• 1x Female Solar Panel Cable Connector

Note

• Please allow a 0.5-1cm difference due to manual measurements.
• Slight color differences may be observed due to lighting and screen settings.
